Firewall Feed-thru
Firewall Feed-thru Firewall Feed-thru Firewall Feed-thru Firewall Feed-thru Firewall Feed-thru

Firewall Feed-thru

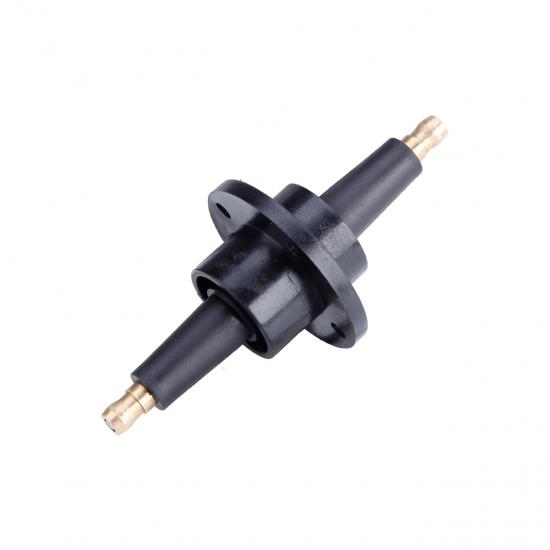

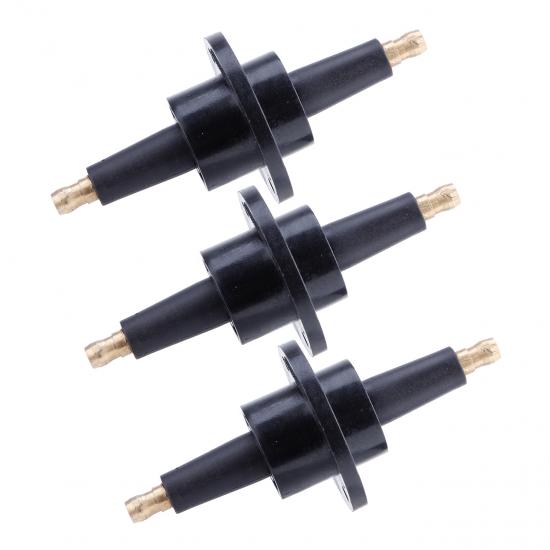

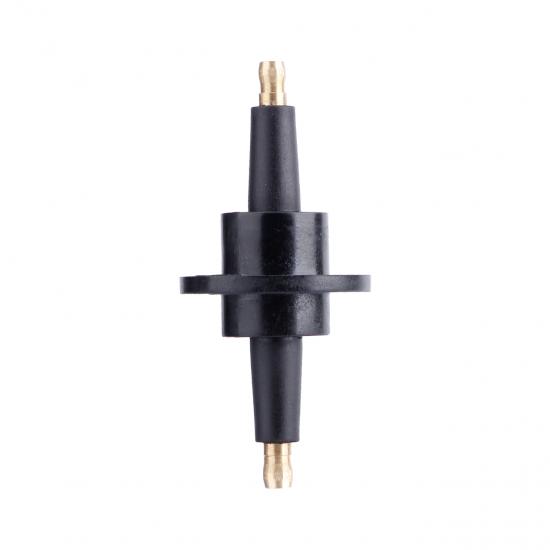

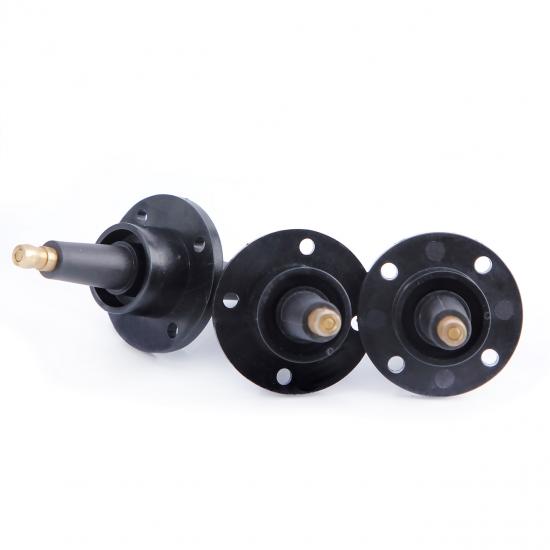

Firewall Feed-thru 80106001 helps install ignition coil in the passenger compartment and routes spark plug wire through the firewall. The 1/2'' insulation ensures that the coil spark gets to the distributor instead of jumping to ground at the firewall.

  • Item no.:

    80106001

  • Product origin:

    China

  • Color:

    Black

  • Shipping port:

    Guangzhou

  • Lead Time:

    45 Days
INQUIRE now
  • Product Detail
  • Technical Specifications

Features


  • Designed to prevent voltage leak
  • 1/2'' insulation ensures that the coil’s spark reaches the distributor
  • HEI Style brass terminals for strong coil wire connections.
  • Mounts in 1" hole directly to the firewall
  • Brass rod for full spark transfer




Installation Instruction



Part No.                                                         80106001

Color                                                              Black

Material                                                         Rynite and Nylon

Mounting Hole Size                                       1''
